Κουτιά Υπολογιστών

Model Core X71 TG Edition P/N CA-1F8-00M1WN-02 Case Type Full Tower Dimension (H x W x D) 677 x 250 x 511 mm (26.7 x 9.8 x 20.1 inch) Net Weight 12.7 kg / 27.9 lb Side Panel Tempered Glass (4mm thickness) Color Exterior & Interior : Black Material SPCC Cooling System Front (intake) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 2 (1000rpm, 22dBA with LNC) Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) Drive Bays -Accessible : 2 x 5.25’’ -Hidden : 3 x 3.5’’ or 2.5’’ (HDD Cage) 2 x 3.5’’ or 2.5’’ (Behind the M/B tray) Expansion Slots 8 + 2 Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 PSU Standard PS2 PSU (optional) LCS Upgradable Supports 1/2”、3/8”、1/4” water tube Fan Support Front:  3 x 120mm , 3 x 140mm , 2 x 200mm Top: 3 x 120mm , 3 x 140mm , 2 x 200mm Rear:  1 x 120mm , 1 x 140mm Bottom: 2 x 120mm , 2 x 140mm Left / Right Side:  3 x 120mm , 2 x 140mm Radiator Support Front:  1 x 480mm , 1 x 420mm Top:  1 x 360mm , 1 x 280mm Rear: 1 x 120mm , 1 x 140mm Bottom: 1 x 120mm , 1 x 140mm Left / Right Side:  1 x 360mm , 1 x 280mm Clearance CPU cooler height limitation: 180mm VGA length limitation: 278mm(with HDD rack)  420mm(without HDD rack) PSU length limitation: 180mm (With One Bottom Fan)  220mm (Without Bottom Fan)

MODEL View 51 TG Snow CASE TYPE Middle Tower DIMENSION (H X W X D) 550 x 315 x 525 mm (21.65 x 12.4 x 20.67 inch) SIDE PANEL 3 x Tempered Glass (4mm thickness) COLOR Exterior & Interior: White MATERIAL SPCC COOLING SYSTEM Front (intake) : 2 x 200 x 200 x 30mm Addressable RGB fan (Fixed 600rpm, 24dBA) Rear (exhaust) : 1 x 120 x 120 x 25mm Addressable RGB fan (Fixed 1000rpm, 27.2 dBA) DRIVE BAYS -ACCESSIBLE -HIDDEN 2 x 3.5’’ or 2.5’’ (With HDD Cage) ; 2 x 2.5’’ (With HDD Bracket) - EXPANSION SLOTS 8 MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), E-ATX (up to 10.5'' wide) I/O PORT 1 x Type-C, 2 x USB 2.0, 2 x USB 3.0, 1 x HD Audio PSU Standard PS2 PSU (optional) FAN SUPPORT Front: 3 x 120mm , 3 x 140mm , 2 x 200mm Top: 3 x 120mm , 3 x 140mm , 2 x 200mm Rear: 1 x 120mm , Right: 3 x 120mm , 2 x 140mm Bottom: 3 x 120mm RADIATOR SUPPORT Front: 1 x 360mm , 1 x 280mm , Top: 1 x 360mm , 1 x 280mm , Right: 1 x 360mm , 1 x 280mm Bottom: 1 x 360mm , CLEARANCE CPU cooler height limitation: 175mm VGA length limitation: 300mm(With Water Pump) 440mm(Without Water Pump) PSU length limitation: 200mm

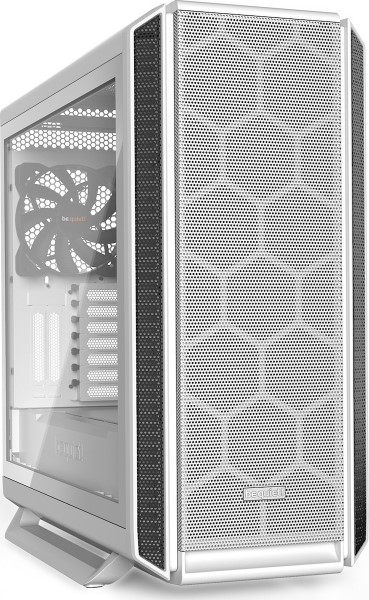

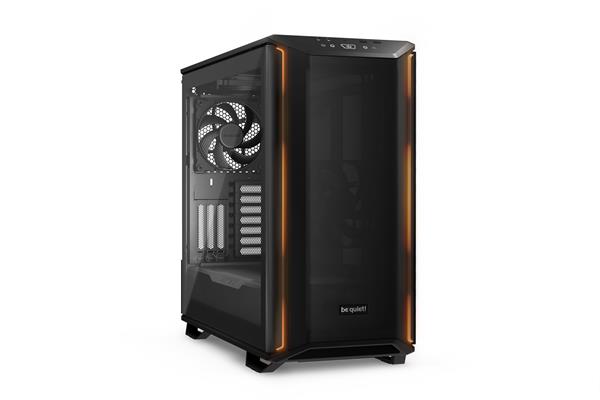

Open mesh design for high airflow and performance 3 pre-installed Silent Wings 4 140mm PWM high-speed fans offer maximum performance Fan controller with PWM motherboard sync option PWM and ARGB Hub for up to 8 PWM fans and 2 ARGB components ARGB lighting with integrated ARGB controller for a stunning look Exceptional usability with easily accessible features Versatile motherboard tray enables an inverted layout Tempered glass side window allowing a superb view ype: Midi ATX Tower Case PSU: Without PSU, ATX PS/2 PSU form factor. Mainboard Support: E-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX Drive Bays 5,25": 0 Drive Bays 3,5": 5 Drive Bays 2,5": 3 Expansion Slots: 7+3 Cooling Fan Installed: 1x Silent Wings 4 140mm PWM high-speed at top, 1x Silent Wings 4 140mm PWM high-speed at front, 1x Silent Wings 4 140mm PWM high-speed at rear. Fan Speed at 100% PWM: 1900rpm Air Flow at 100% PWM: 78.4CMF/ 133.2m3/h Noise at 100% PWM: 29.3dB Max Cooling Fan: Top: 3x 140mm/3x 120mm, Front: 3x 140mm/3x 120mm, Rear: 1x 140mm/ 1x 120mm, Bottom: 1x 140mm/1x 120mm. Optional liquid cooling system: 3 areas to install Top(mm): 120/ 140/ 240/ 280/ 360, Front(mm): 120/ 140/ 240 /280/ 360, Rear(mm): 120.

P/N CA-1I7-00F1WN-00 Case Type Full Tower Dimension (H x W x D) 592 x 274 x 577 mm (23.3 x 10.8 x 22.7 inch) Net Weight 18.9 kg / 41.66 lb Side Panel 5mm Tempered Glass x 4 (Left & Right & Front & Top) Color Exterior & Interior : Black Material SPCC Cooling System Rear (exhaust) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) Front (intake) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) Drive Bays -Accessible -Hidden - 2.5” x 4 or 3.5”x4(HDD Rack) 2.5”x 6 or 3.5” x 3 Expansion Slots 8+2 Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 PSU Standard PS2 PSU (optional) Fan Support Front: 3 x 120mm , 2 x 140mm Top: 3 x 120mm , 3 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm Radiator Support Front: 1 x 360mm , 1 x 420mm Top: 1 x 360mm , 1 x 420mm Rear: 1 x 120mm, 1 x 140mm Right: 1 x 360mm, 1 x 420mm Bottom: 1 x 240mm Clearance CPU cooler height limitation: 190mm VGA length limitation: 310mm(With HDD Rack) 410mm(Without HDD Rack) PSU length limitation: 220mm (Without Bottom Fan)
