shape factorATX
chipsetAMD B550
VRM4 real phases (4+1), 14 virtual phases (12+2), ASP1106 (RT8877C, max. 6 phases)
MOSFETs CPU12x 50A SIC639
MOSFETs SoC2x 50A SIC639
RAM4x DDR4 DIMM, dual PC4-40800U/DDR4-5100 (OC), max. 128GB (UDIMM)
Extension slots1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242)

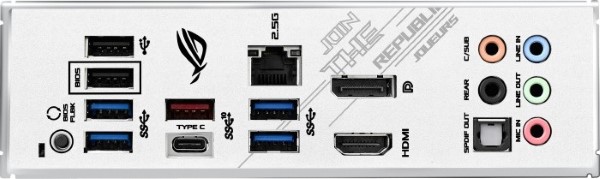

external connectors1x HDMI 2.1 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Intel I225-V), 5x jack, 1x toslink
Internal connectors1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x Thunderbolt-Header 13-Pin
Header Cooling2x CPU fan 4-Pin, 3x fan 4-Pin, 1x AIO-pump 4-Pin, 1x Thermal-sensor
Header Lighting2x 4-Pin RGB (+12V/G/R/B, max. 3A), 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/SwitchesUSB BIOS Flashback (external)
Audio7.1 (Realtek ALC1220/ASUS SupremeFX), DTS Sound Unbound
onboard-GraphicsiGPU
Wirelessnot available
RAID level0/1/10 (B550)
Multi-GPUAMD 2-Way-CrossFireX (x16/x4)
Power connections1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Lightingnot available
BIOS1x 32MB (256Mb)
Special featuresaudio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 2x M.2-passive cooler, ECC-support
