shape factormini-ITX
CPUAMD E1-2150, 2x 1.05GHz, 1MB cache, 9W TDP
chipsetSystem-on-Chip (SoC)
RAM2x DDR3 DIMM, PC3L-10667U/DDR3L-1333, max. 16GB (UDIMM)
Extension slots1x PCIe 2.0 x16 (x4)

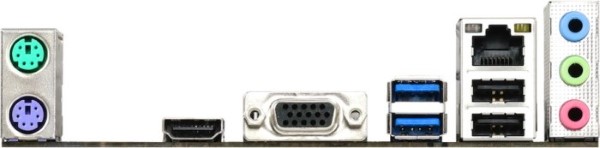

external connectors1x VGA (iGPU), 1x HDMI 1.4 (iGPU), 2x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 keyboard, 1x PS/2 mouse
Internal connectors2x USB 2.0 header (4x USB 2.0), 2x SATA 6Gb/s, 1x serial, 1x parallel, 1x TPM-Header
Header Cooling1x CPU fan 3-Pin (occupied), 1x fan 3-Pin
Header Lightingnot available
Audio7.1 (Realtek ALC887)
onboard-GraphicsiGPU (AMD Radeon HD 8210)
Wirelessnot available
RAID levelnot available
Multi-GPUnot available
Power connections1x 24-Pin ATX, 1x 4-Pin ATX12V
Lightingnot available
Special featuresAll solid capacitors, passive cooled
